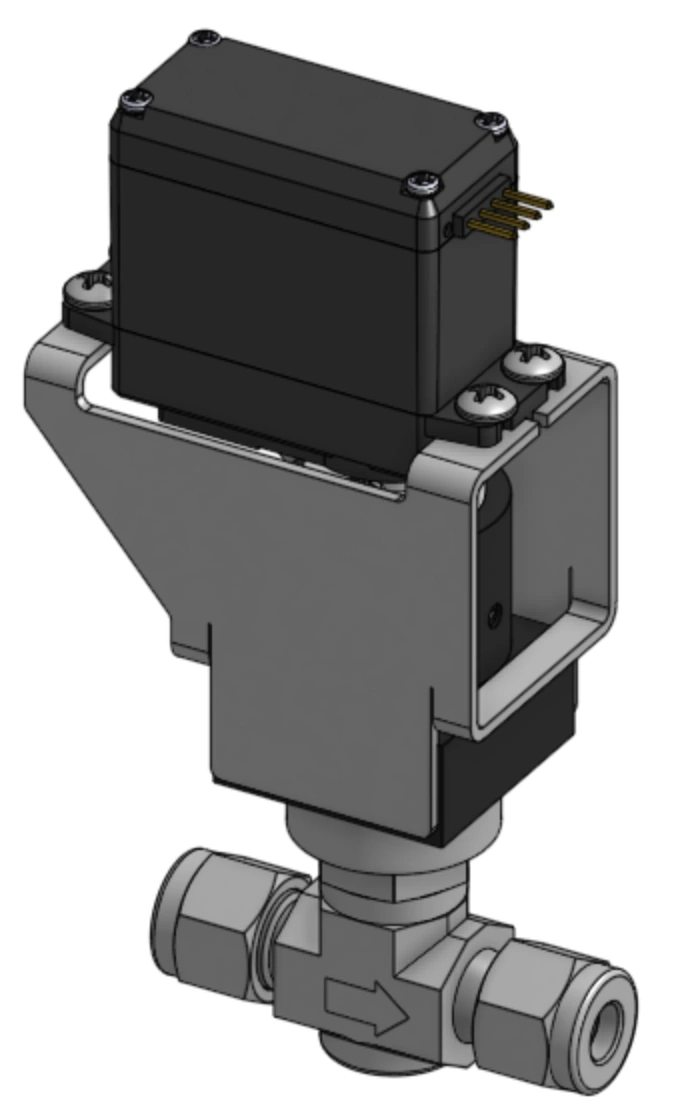

Medium flow valve (1/4"). The fluid flow rate between its two connected chambers varies as the valve stem is rotated. (Note that the flow rate also depends on the pressure difference between the chambers. Such a valve may, for example, be used to "bleed" a mixture of gases through a trap to separate condensable and incondensable fractions.
Bill Of Materials | Qty | Unit | Total | Notes |
actuator medium flow valve | 1 | ea | 221.25 | |
labor assembly/fabrication (min) | 1 | min | 0.92 | |
medium flow valve 1/4 modified | 1 | ea | 352.05 | |
medium flow valve 1/4 + actuator | 1 | ea | 574.22 |
Used on | Qty |
CT flow | 1 |
Vacuum Section LL6 | 3 |
FT gas side LL | 1 |
2CT | 1 |
Process Section LR kit | 1 |
Vacuum Section LR | 3 |
Vacuum Section FB | 3 |
Vacuum Section dual | 3 |
TF outlet LL | 1 |
Process Section FB | 1 |
FT gas dual out LL | 1 |
TF outlet | 1 |
FT gas side | 1 |
FT gas down | 1 |
FT gas dual out | 1 |
FT gas down LL | 1 |
TF outlet ISEL LL | 1 |
FT gas ISEL LL | 1 |
CT flow PPS | 1 |
Vacuum Section 6X | 3 |
